Xenterra Hybrid Solar Inverter & Acumulator



Single Phase 48V 3.6KW Hybrid inverter :ME-GLE-S3.6K

Output Rated Power: 3600VA / 3600W,
Output Nominal Voltage: 230Vac，50/60Hz,
Max.PV Input Voltage,450Vdc,
MPPT Voltage Range:90-430Vdc

                         Max. Solar+AC Charging Current: 70A
Battery Voltage Range: 40-60Vdc,
                              Ingress Protection: IP51

Cooling Mode: intelligent fan
installation: Wall Mount
FIT/Net-metering not supported

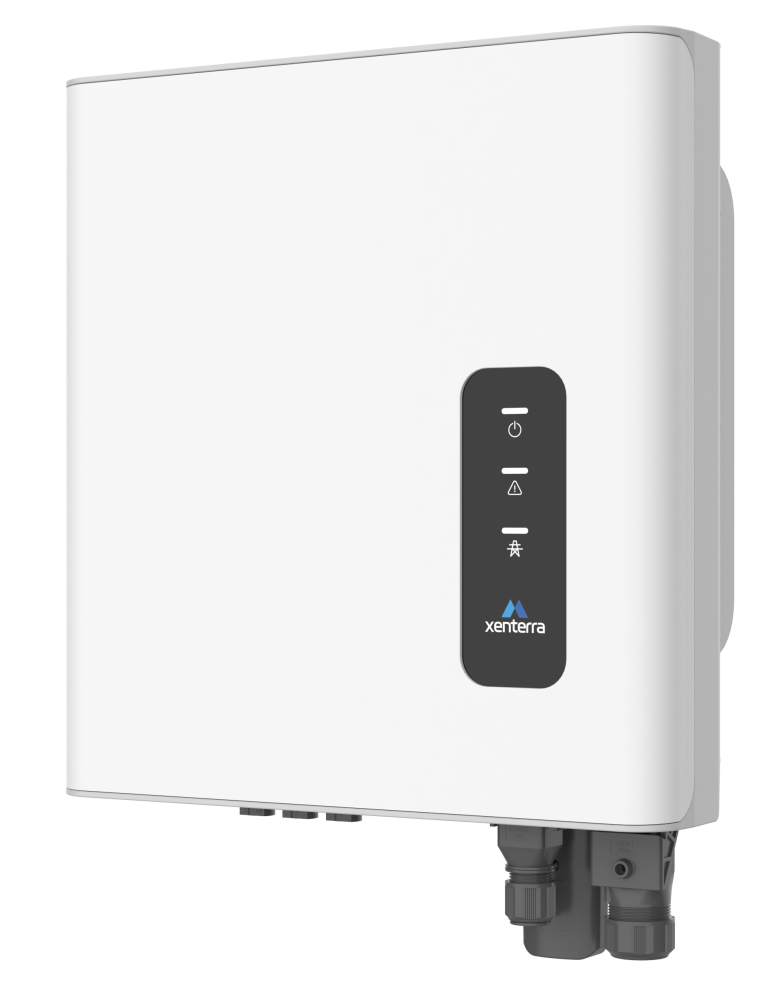

Single Phase 48V 5KW Wall Mount Hybrid inverter:ME-GLE-S5K

Output Rated Power: 5200VA / 5200W,
Output Nominal Voltage: 230Vac，50/60Hz,
Max.PV Input Voltage,450Vdc,

Max.PV Input Current:  22A
MPPT Voltage Range:90-430Vdc
Max. Solar+AC Charging Current: 100A
Battery Voltage Range: 40-60Vdc,
                              Ingress Protection: IP51

Cooling Mode: intelligent fan
             installation:Wall Mount,

Max. 9 Units in Parallel
FIT/Net-metering not supported



Single Phase 48V 5KW Stackable Hybrid inverter: ME-GLE-S5KⅡ
Output Rated Power: 5200VA / 5200W,
Output Nominal Voltage: 230Vac，50/60Hz,
Max.PV Input Voltage,450Vdc,

Max.PV Input Current:  28A
MPPT Voltage Range:90-430Vdc
Max. Solar+AC Charging Current: 100A
Battery Voltage Range: 40-60Vdc,
                             Ingress Protection: IP51

Cooling Mode: intelligent fan
            installation: Stackable

Max. 9 Units in Parallel
FIT/Net-metering not supported



48V Single Phase 6KW Hybrid inverter: ME-GLE-S6K
Output Rated Power: 6000VA / 6000W,
Output Nominal Voltage: 230Vac，50/60Hz,
Max.PV Input Voltage,500Vdc,

Max.PV Input Current:  15A+15A
MPPT Voltage Range:90-450Vdc

Max. Solar+AC Charging Current: 125A
Battery Voltage Range: 40-60Vdc,
                               Ingress Protection: IP65

Cooling Mode: Natural Cooling
                                 installation: Wall Mount

Max. 9 Units in Parallel
FIT/Net-metering not supported



48V Single Phase 8KW Hybrid inverter: ME-GLE-S8K
Output Rated Power: 8000VA / 8000W,
Output Nominal Voltage: 230Vac，50/60Hz,
Max.PV Input Voltage,500Vdc,

Max.PV Input Current:  26A+26A
MPPT Voltage Range:90-450Vdc

Max. Solar+AC Charging Current: 190A
Battery Voltage Range: 40-60Vdc,
                            Ingress Protection: IP65

Cooling Mode: Natural Cooling
                                    installation: Wall Mount

Max. 9 Units in Parallel
FIT/Net-metering not supported



48V Single Phase 10KW Hybrid inverter: ME-GLE-S10K
Output Rated Power: 10000VA / 10000W,
Output Nominal Voltage: 230Vac, 50/60Hz,
Max.PV Input Voltage,500Vdc,

Max.PV Input Current:  26A+26A
MPPT Voltage Range:90-450Vdc

Max. Solar+AC Charging Current: 210A
Battery Voltage Range: 40-60Vdc,
                            Ingress Protection: IP65

Cooling Mode: Natural Cooling
                             installation: Wall Mount

Max. 9 Units in Parallel
FIT/Net-metering not supported

51.2V 5.12kWh  Lithium Energy Storage Battery: ME-GLE-B5K
Nominal Energy: 5.12kWh,
Operating Voltage: 40-60V,
Nominal Capacity: 100Ah,
Max. Charge & Discharge Current: 100A
Ingress Protection: IP51,
Cycle Life : >6000 @90%DOD,
wall-Mounted/Stackable,  Weigt:49KG
Max. 7 pcs in Parallel (35.84kWh)



Stackable Battery Base With Wheel: N/A
Size: 64*46*15 CM
Weigt：8.5KG
Maximum 7 pieces ME-GLE-B5K Batteries to be stacked on


51.2V 5.12kWh  Lithium Energy Storage Battery: ME-GLE-BW5K
Nominal Energy: 5.12kWh,
Operating Voltage: 40-60V,
Nominal Capacity: 100Ah,
Max. Charge & Discharge Current: 100A,
Ingress Protection: IP51,
Cycle Life: >6000 @90%DOD,
Wall mount    Weigt:50KG
Max. 8 pcs in Parallel, With intelligent BMS protection board

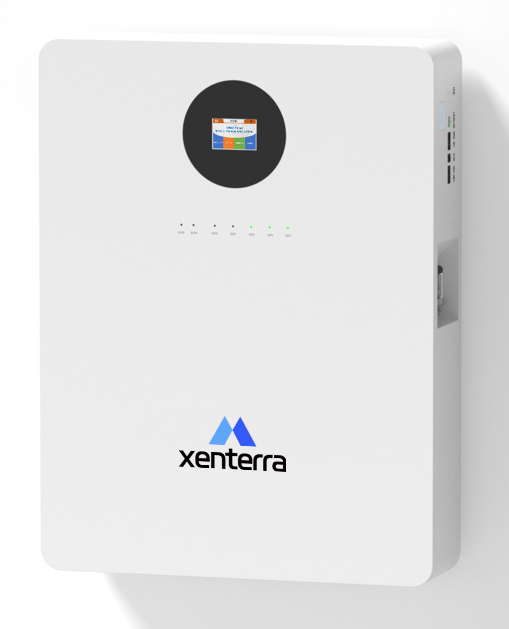

51.2V 10.24kWh  Lithium Energy Storage Battery: ME-GLE-BW10K
Nominal Energy: 10.24kWh,
Operating Voltage: 40-60V,
Nominal Capacity: 200Ah,
Maximum Charge & Discharge Current : 200A
Ingress Protection: IP51,
Cycle Life: >=6000 @90%DOD,
Wall Mount     Weigt:120KG
Max. 8 pcs in Parallel, With intelligent BMS protection board

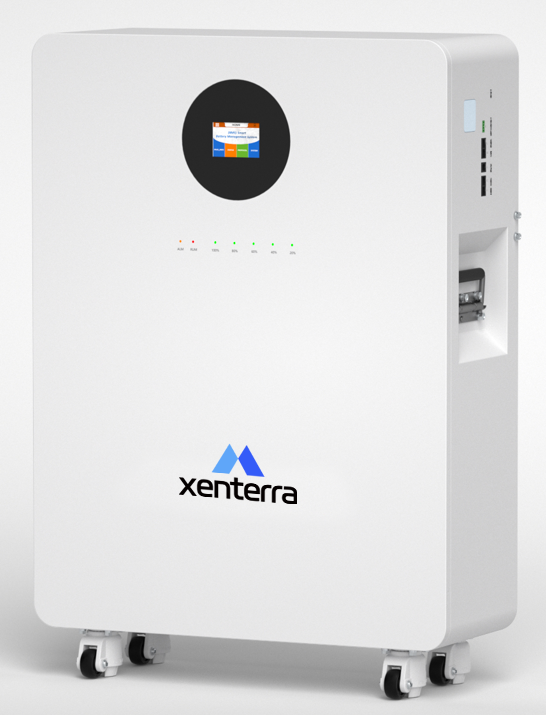

51.2V 16kWh  Lithium Energy Storage Battery: ME-GLE-B16K
Nominal Energy: 16kWh,
Operating Voltage: 40-60V,
Nominal Capacity: 314Ah,
Max. Charge & Discharge Current: 200A,
Ingress Protection: IP51,
Cycle Life: >=8000 @90%DOD,
Floor Standing     Weigt:150KG
Max. 8 pcs in Parallel, With intelligent BMS protection board



Topcon N-type Mono-crystallin 600 Watt/white Frame: XNPV-600TW
Maximum Power-Pmax: 600Wp
Maximum Power Voltage-Vmp: 42.54V
Maximum Power Current-lmp:14.10A
Open-circuit Voltage-Voc:51.46V
Short-circuit Current-Isc:14.61A
Module Efficiency STC: 23.21%
Operation Temperature: -40°C~+85°C
                    Safety Class: Class II

Ingress Preotection:  IP68
weight : 28 KG
